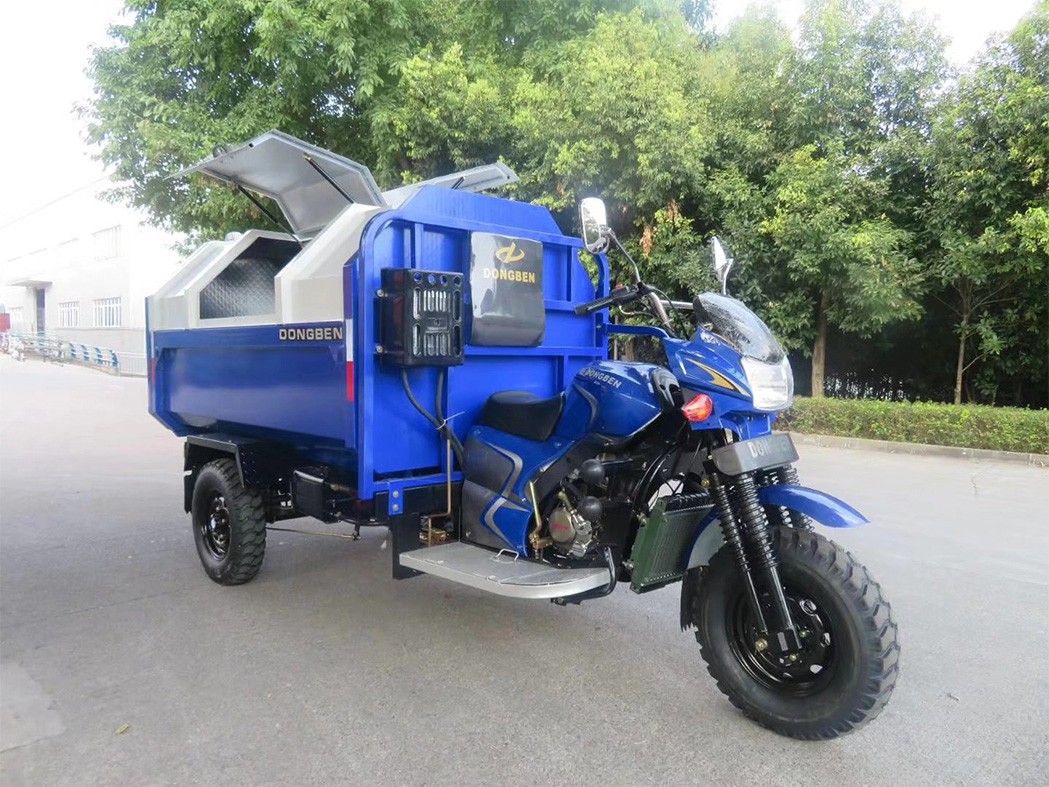

DB200R

Vehicle Part

Dimension(L*W*H)(mm):

2930mm×1250mm×1330mm

Cargo Box Length (mm):

1800mm×1300mm

Wheel Base(mm):

2050mm

Track (mm):

1040mm

Unladen Kerb Weight(kg):

390kg

Loading Capacity(kg):

600kg

Min Ground Clearance(mm):

170mm

Maximum speed(Km/h):

≤60Km/h

Front Suspension Mode:

Four-column front shock absorber assy

Rear Suspension Mode:

Integral 5 Leaf Spring +Damper

Starting Mode:

Electric/Kick

Drive Mode:

Shaft drive

Gearshift Mode:

Foot

Clutch Mode:

Manual

Brake Mode(F/R):

Front /rear mechanic drum brake

Fuel Tank Capacity(L):

12L

Tyre Size(F/R):

5.00-12

Fuel Type:

Gasoline

Min.Fuel Consumption(g/kW.h)

354g/kW.h

Turning Radius(m):

4.2m

Transmission:

5 Forward+1 reverse gears

Engine Part

Engine Mode:

Single cylinder, 4-stroke, air cooled

Displacement(ml):

200CC

Bore×Stroke (mm):

63.5mm×62.2mm

Rated Power&Rotating Speed:

10.0Kw/7500r/min

Max.Torgue&Rotating Speed:

14.0N.m/6000r/min

Compression:

9.2:1

Ignition mode:

C.D.I

Optional

Displacement:

150CC/175CC

Brake Mode:

Rear oil brake
