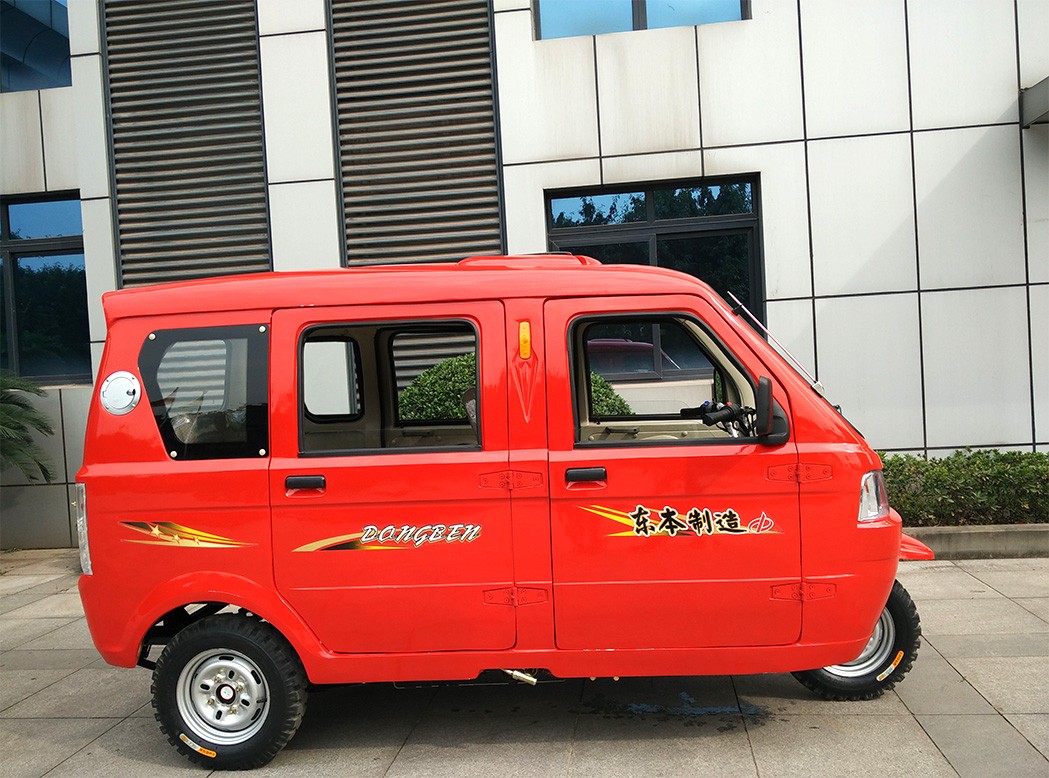

DB150ZK-A

Vehicle Part

Dimension(L*W*H)(mm):

3030mm×1350mm×1720mm

Wheel Base(mm):

2190

Track(mm):

1160

Unladen Kerb Weight(kg):

420kg

Passenger Capacity(kg):

3(People)

Min Ground Clearance(mm):

165mm

Maximum Speed(Km/h):

≤60Km/h

Material:

Fiberglass

Front Suspension Mode:

Detachable cradle front shocked absorber

Rear Suspension Mode:

Integral leaf spring +damper+ordinary rear axle

Starting Mode:

Electric/kick

Drive Mode:

Shaft drive

Gearshift Mode:

Foot

Clutch Mode:

Manual

Brake Mode(F/R):

Frontφ130/rearφ180:drum

Fuel Tank Capacity(L):

10L

Tyre Size(F/R):

4.50-12

Fuel Type:

Gasoline

Min.Fuel Consumption(g/kW.h)

388g/kW.h

Turning Radius(m):

4.2m

Transmission:

5 Forward+1 reverse gears

Engine Part

Engine Mode:

Single cylinder, 4-stroke, water cooled diagonal, cam downward

Displacement(ml):

150CC

Bore×Stroke(mm):

56.5mm×60mm

Rated Power&Rotating Speed:

8.5Kw/7500r/min

Max.Torgue&Rotating Speed:

11 N.m/6000r/min

Compression:

11:01

Ignition Mode:

C.D.I

Optional

Displacement:

175CC/200CC

Brake Mode(F/R):

Rear oil brake

Tyre Size(F/R):

5.00-12
