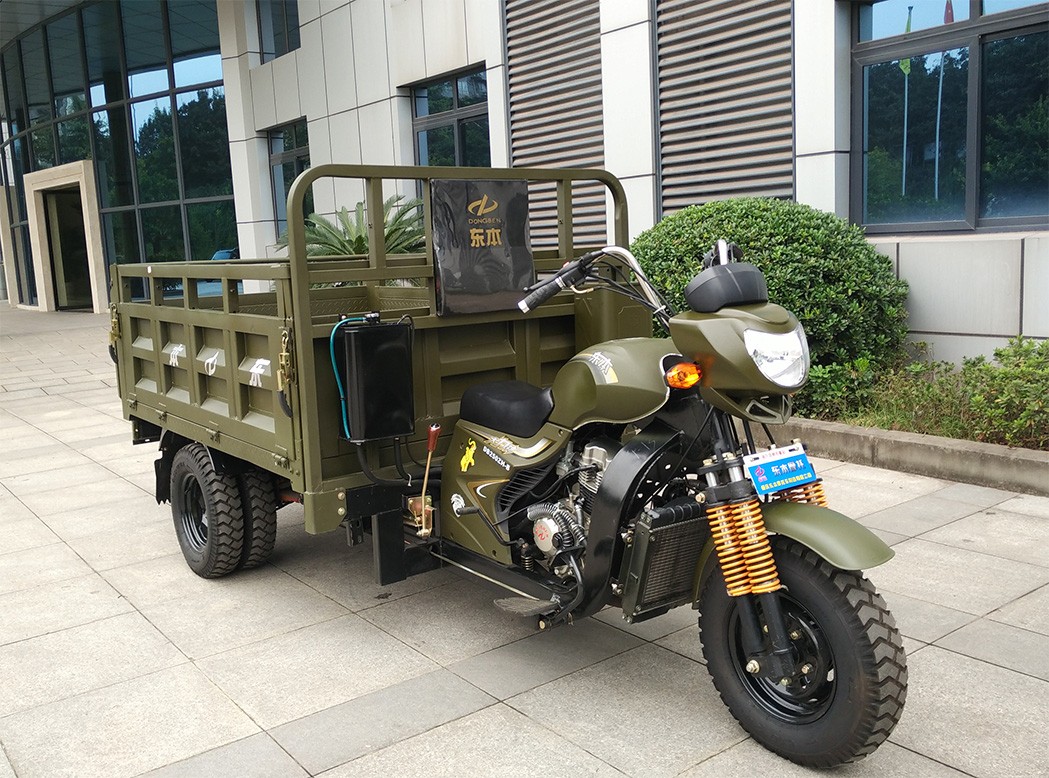

DB250ZH-4A

Vehicle Part

Dimension(L*W*H)(mm):

3490mm×1500mm×1580mm

Cargo Box Length (mm):

2000mm×1300mm×620mm

Wheel Base(mm):

2470mm

Track (mm):

1140mm

Unladen Kerb Weight(kg):

510kg

Loading Capacity(kg):

600kg

Min Ground Clearance(mm):

165mm

Maximum speed(Km/h):

≤60Km/h

Front Suspension Mode:

Four-column front shock absorber assy

Rear Suspension Mode:

5+2Leaf spring +damper , floating rear axle

Starting Mode:

Electric/Kick

Drive Mode:

Shaft drive

Gearshift Mode:

Foot

Clutch Mode:

Manual

Brake Mode(F/R):

Frontφ160&rear φ220 mechanical drum

Fuel Tank Capacity(L):

14L

Tyre Size(F/R):

5.00-12

Fuel Type:

Gasoline

Min.Fuel Consumption(g/kW.h)

345g/kW.h

Turning Radius(m):

4.6m

Transmission:

5 Forward & 1 Reverse Gears

Engine Part

Engine Mode:

Single cylinder diagonal,4-stroke,water cooled,cam downward

Displacement(ml):

250CC

Bore×Stroke (mm):

63.5mm×62.2mm

Rated Power&Rotating Speed:

10.3Kw/7500r/min

Max.Torgue&Rotating Speed:

14.2N.m/6000r/min

Compression:

10.5:1

Ignition mode:

C.D.I

Optional

Cargo Box Length(m):

2.2m/2.4m

Displacement:

175CC/200CC/300CC

Brake Mode:

Rear oil brake

Tyre Size(F/R):

Zhengxin tyre 5.0

Hydraulic Dumper:

Mechanic /Electric
