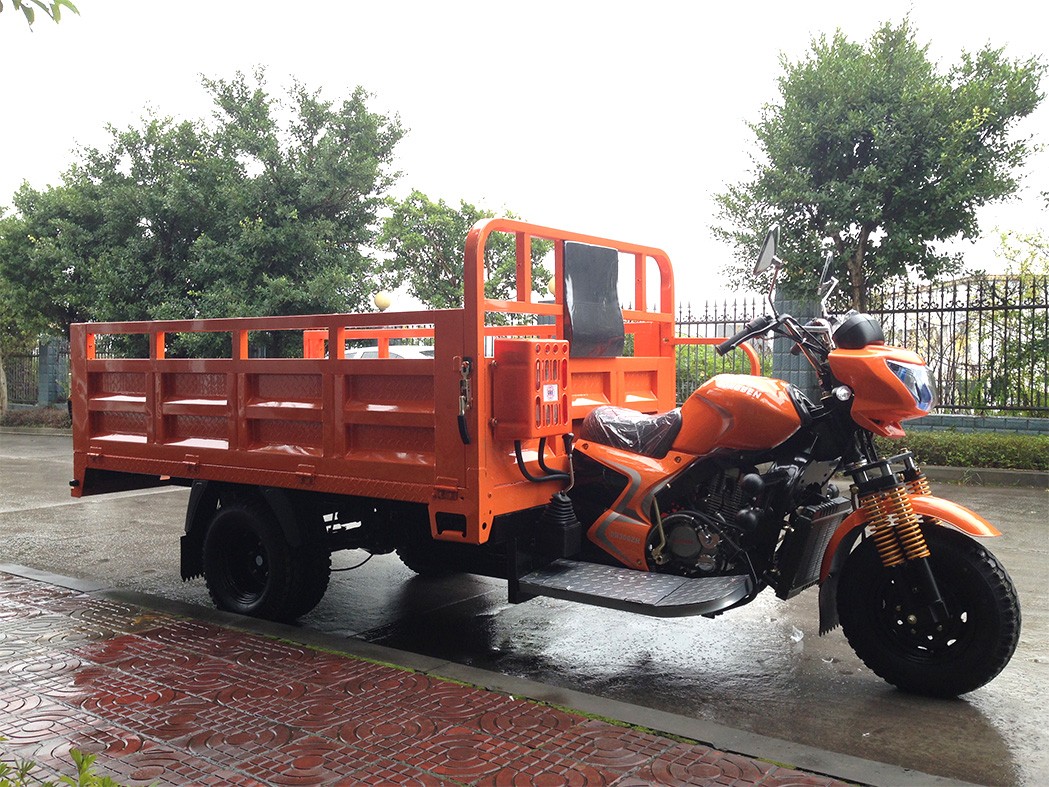

DB250ZH-6A

Vehicle Part

Dimension(L*W*H)(mm):

3700mm×1500mm×1625mm

Cargo Box Length (mm):

2000mm×1400mm×650mm

Wheel Base(mm):

2440mm

Track (mm):

1200mm

Unladen Kerb Weight(kg):

550kg

Loading Capacity(kg):

600kg

Min Ground Clearance(mm):

165mm

Maximum speed(Km/h):

≤60Km/h

Front Suspension Mode:

King-load front shock absorber assy

Rear Suspension Mode:

7+2Leaf spring+damper ,half-floating rear axle

Starting Mode:

Electric/Kick

Drive Mode:

Shaft drive

Gearshift Mode:

Foot

Clutch Mode:

Manual

Brake Mode(F/R):

Frontφ160&rear φ220 mechanical drum

Fuel Tank Capacity(L):

22L

Tyre Size(F/R):

5.00-12

Fuel Type:

Gasoline

Min.Fuel Consumption(g/kW.h)

418g/kW.h

Turning Radius(m):

5.2m

Transmission:

5 Forward &1 reverse gears

Engine Part

Engine Mode:

Single cylinder,4-stroke,water cooled

Displacement(ml):

250CC

Bore×Stroke (mm):

63.5mm×62.2mm

Rated Power&Rotating Speed:

10.3Kw/7500r/min

Max.Torgue&Rotating Speed:

14.2N.m/6000r/min

Compression:

10.5:1

Ignition mode:

C.D.I

Optional

Cargo Box Length(m):

2.2m/2.5m

Displacement:

200CC/300CC

Brake Mode:

Rear oil brake

Tyre Size(F/R):

5.50-13
