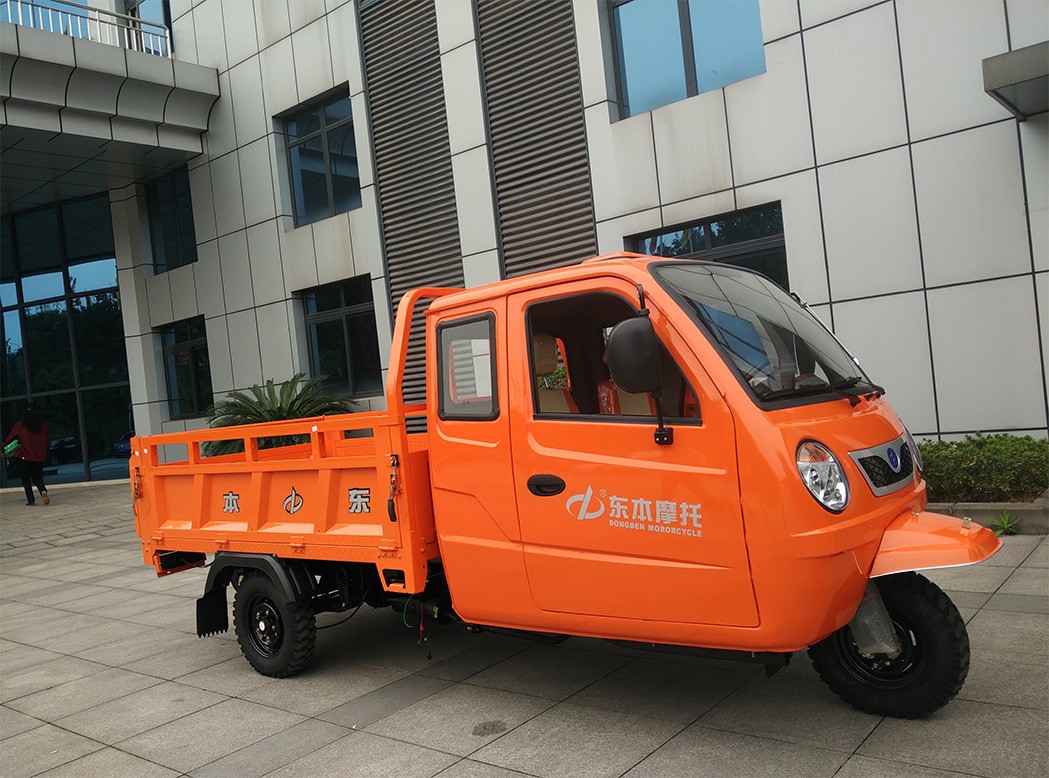

DB200ZH-3B

Vehicle Part

Dimension(L*W*H)(mm):

4200mm×1490mm×1810mm

Cargo Box Length (mm):

2000mm×1400mm×570mm

Wheel Base(mm):

2700mm

Track (mm):

1190mm

Unladen Kerb Weight(kg):

650kg

Loading Capacity(kg):

600kg

Min Ground Clearance(mm):

165mm

Maximum speed(Km/h):

≤60Km/h

Front Suspension Mode:

Detachable cradle front shocked absorber

Rear Suspension Mode:

5+2leaf spring+damper+ balance bar+pressing rear axle

Starting Mode:

Electric /kick

Drive Mode:

Shaft drive

Gearshift Mode:

Foot

Clutch Mode:

Manual

Brake Mode(F/R):

Frontφ160/rear φ220mechanic drum brake

Fuel Tank Capacity(L):

16L

Tyre Size(F/R):

5.00-12

Fuel Type:

Gasoline

Min.Fuel Consumption(g/kW.h)

388g/kW.h

Turning Radius(m):

5.2m

Transmission:

5 Forward+1 reverse gears

Engine Part

Engine Mode:

Single cylinder,4-stroke ,water cooled,cam upward

Displacement(ml):

200CC

Bore×Stroke (mm):

69mm×65mm

Rated Power&Rotating Speed:

11.5Kw/7000r/min

Max.Torgue&Rotating Speed:

19.0N.m/5000r/min

Compression:

10.5:1

Ignition mode:

C.D.I

Optional

Cargo Box Length(m):

2.2m/2.4m

Displacement:

250CC/300CC

Brake Mode:

Rear oil brake

Operating Mode:

Steering wheel/Handle bar

Galle mechanism:

Galler rear axle/8 generation Galler rear axle
