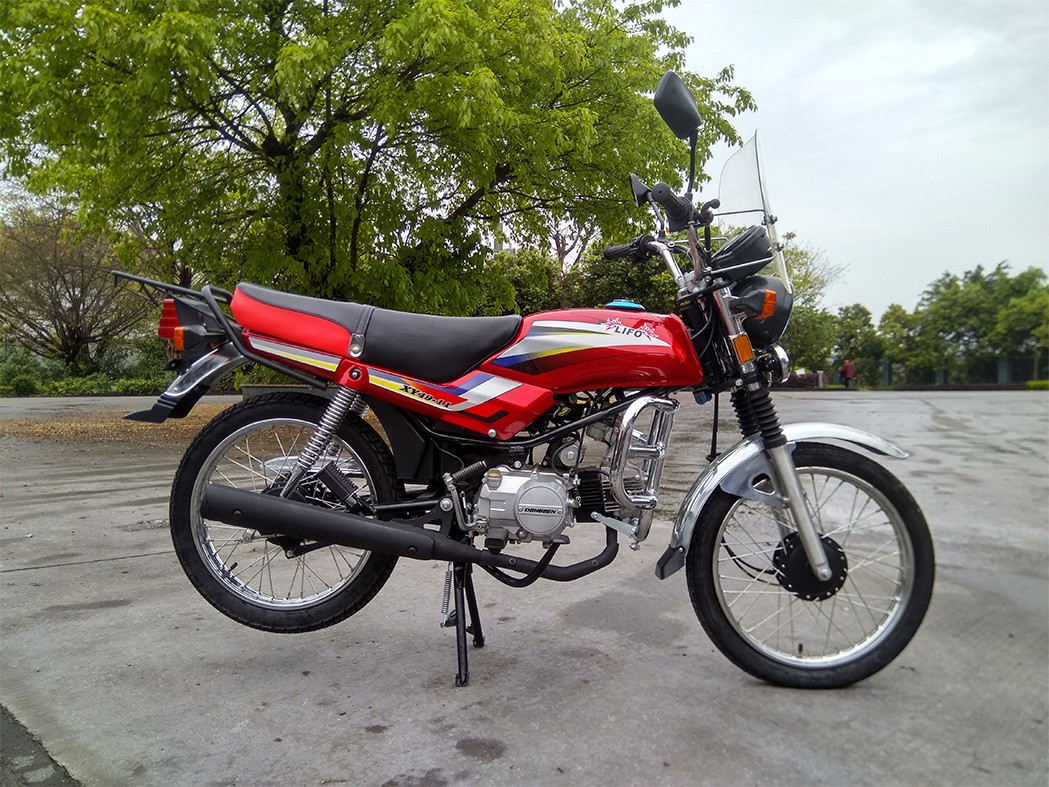

DB70-1

Vehicle Part

Dimension(L*W*H)(mm):

1930mm×800mm×1120mm

Wheel Base(mm):

1220mm

Seat Height(mm):

780mm

Unladen Kerb Weight(kg):

84kg

Loading Capacity(kg):

150kg

Min Ground Clearance(mm):

200mm

Maximum speed(Km/h):

80Km/h

Front Suspension Mode:

Telescopic Shock Absorber

Rear Suspension Mode:

Double Shock Absorber

Starting Mode:

Electric/Kick

Gearshift Mode:

Foot

Clutch Mode:

Manual Clutch

Brake Mode(F/R):

Drum / Drum

Fuel Tank Capacity(L):

6.5L

Tyre Size(F/R):

2.50-18, 3.00-17

Wheel:

Spoke Wheel

Fuel Type:

Gasoline

Fuel Economy:

1.6L/100km

Transmission:

Constant-mesh 4-speed

Engine Part

Engine Mode:

Single cylinder, 4-stroke, air cooled

Displacement(ml):

70CC

Bore×Stroke (mm):

47mm×41.4mm

Maximum Power:

3.1kw at 8000rpm

Maximum Torsion:

4.5N.m at 5000rpm

Compression:

8.8:1

Ignition mode:

C.D.I

Optional

Displacement:

50CC, 90CC, 110CC, 125CC

Starting Mode:

Kick

Wheel:

Alloy Wheel

Headlight:

Square

Speedometer:

Square

Remote Control:

Yes

Helmet:

Yes
