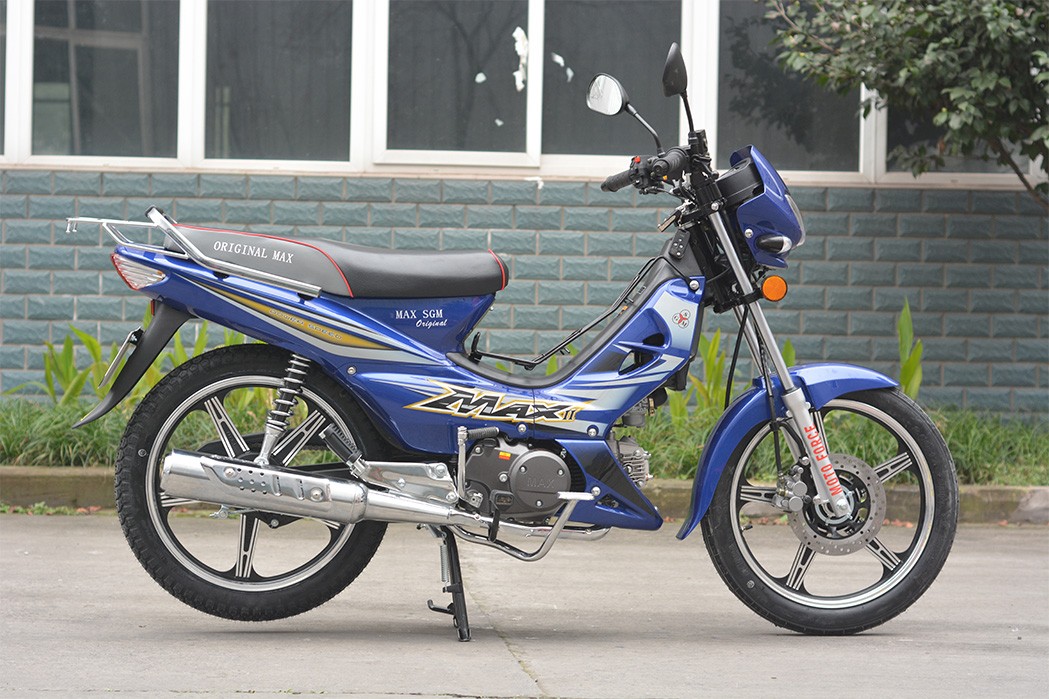

DB110-5

Vehicle Part

Dimension(L*W*H)(mm):

1920mm×660mm×1100mm

Wheel Base(mm):

1210mm

Seat Height(mm):

760mm

Unladen Kerb Weight(kg):

78kg

Loading Capacity(kg):

150kg

Min Ground Clearance(mm):

120mm

Maximum speed(Km/h):

80Km/h

Front Suspension Mode:

Telescopic Shock Absorber

Rear Suspension Mode:

Double Shock Absorber

Starting Mode:

Electric/Kick

Gearshift Mode:

Foot

Clutch Mode:

Automatic Clutch

Brake Mode(F/R):

Disk / Drum

Fuel Tank Capacity(L):

3.5L

Tyre Size(F/R):

2.50-17, 2.75-17

Wheel:

Alloy Wheel

Fuel Type:

Gasoline

Fuel Economy:

1.6L/100km

Transmission:

Constant-mesh 4-speed

Engine Part

Engine Mode:

Single cylinder, 4-stroke, air cooled

Displacement(ml):

110CC

Bore×Stroke (mm):

52.4mm×49.5mm

Maximum Power:

5.1kw at 8000rpm

Maximum Torsion:

7.2N.m at 5000rpm

Compression:

9.0:1

Ignition mode:

C.D.I

Optional

Displacement:

50CC, 70CC, 90CC, 125CC

Brake Mode:

Front Drum

Wheel:

Spoke Wheel

Remote Control:

Yes

Helmet:

Yes
